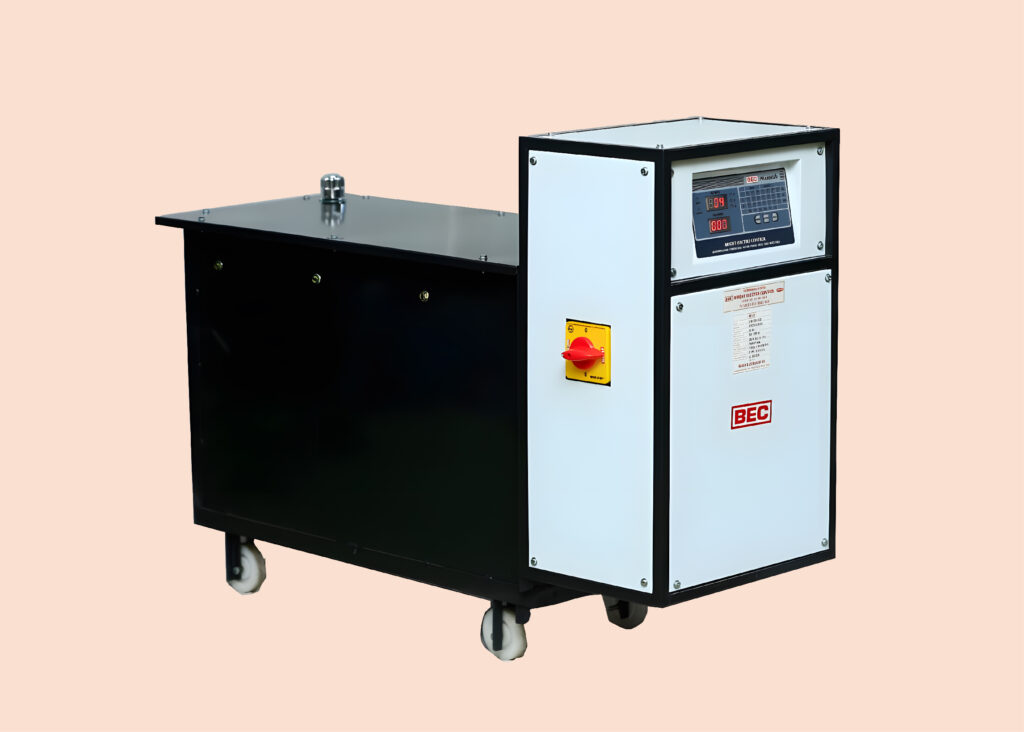

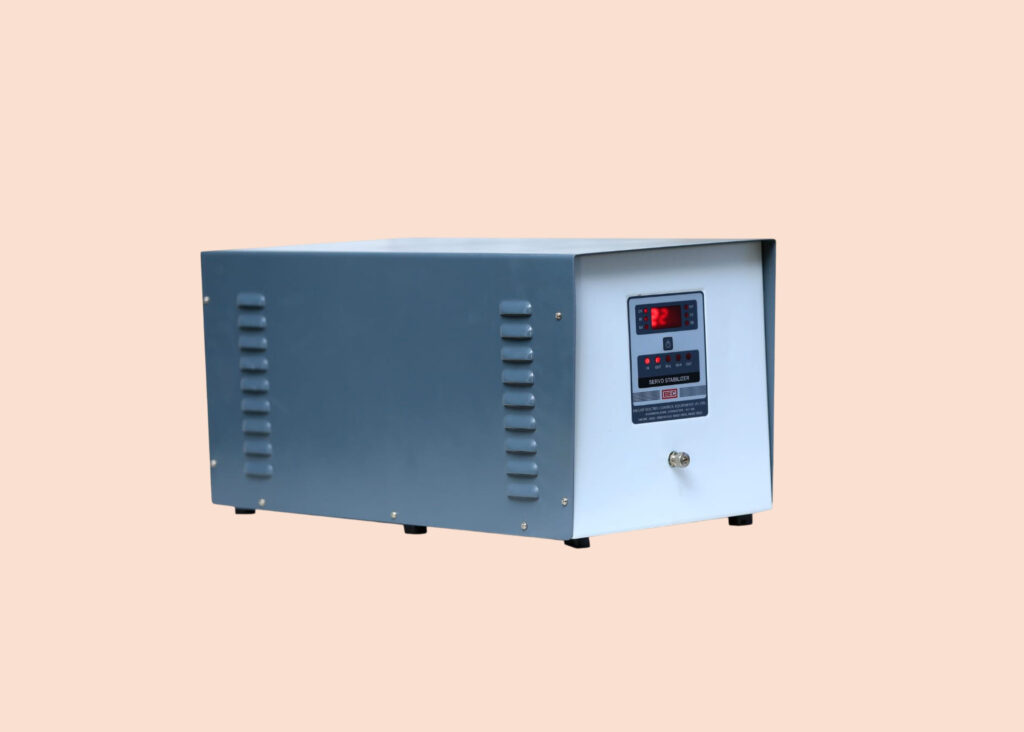

BEC Servo Voltage Stabilizer

BEC Servo voltage stabilizer which is equipped with advanced Micro controller based solid state circuit which is used to control the synchronous motor. The motor drives the auto transformer arm which is mechanically attached to the motor. This auto transformer controls the voltage fed to the BBT connected in series with  the  mains.It is in compliance  with  requisite norms and standards.

BEC voltage stabilizer employs a motor-driven variable transformer feeding the primary winding of a power transformer. The secondary winding of power transformer is connected in series between incoming supply and load. The voltage induced on secondary will be added or subtracted from the input voltage depending on its polarity. A solid state electronic control unit sense the output voltage and operate the servo motor in a suitable direction to correct the output voltage by changing the carbon brush position on in the variable transformer.

To maintain the consistency in the performance of the machines, these are also continually upgraded.

Apart from our regular products, we make custom made structures to suit their space availability

S.NO

PARTICULARS

SPECIFICATION

1.

Capacity

1 – 1000 kva single / three phase

2.

Type

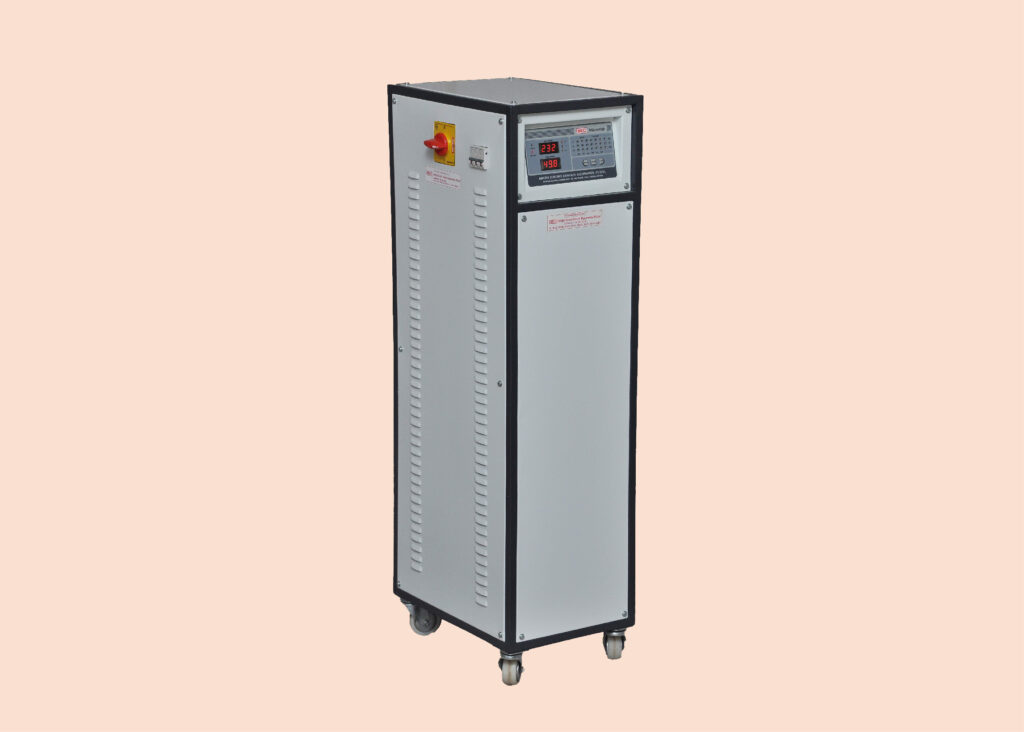

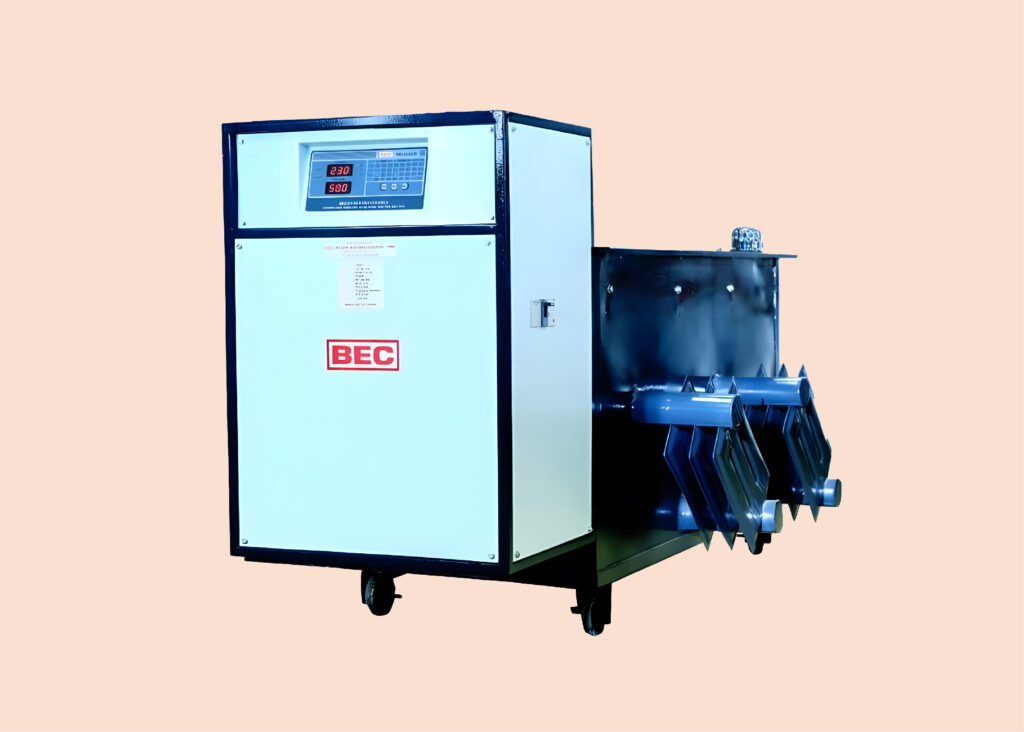

Air Cooled / Oil Cooled

3.

Technology

Micro controller based digital technology

4.

Supply Frequency

45 – 55 Hz

5.

Input Voltage

90 / 140 / 170 /195 – 270 / 320 V in Single Phase
170 / 240 / 295 / 340 – 460 / 480 / 500V in Three Phase

6.

Output Voltage

230 /400 v +/- 1% (adjustable)

7.

Output Voltage Accuracy

Better Than +/- 1%

8.

Speed of Correction

32 / 60 V per sec

9.

Efficiency

Better Than 99%

10.

Wave Form Distortion

Nil

11.

Effect of Load Power Factor

Nil

12.

Environment

Indoor Use

13.

Ambient Temperature

0 – 50 degree Celsius

14.

Input Fuse / MCCB

Variac fuse & input MCB/ MCCB

15.

Voltmeter


0–999 v digital voltmeter provided for measuring phase to neutral and phase to phase voltage at each phase input & output

16.

Relative Humidity

90%

17.

Indication

Suitable LED / LCD indicator to be Provided for

  •  DELAY

  • RYB input indication

  • RYB Output indication

  • Input ,Output Low

  • Input , Output High

18.

Controls

  • Auto Control Programming to set suitable Output Voltage in Auto control mode.

  •  Input/Output Voltage push button switch to measure the Voltages

  • Automatic On / Start and Stop Push button to switch OFF the stabilizer (Option).

19.

Protection

  • Overload and Short Circuit protection Suitable MCB / MCCB to be provided

  • Micro Controller based Electronic Sensing Circuit with suitable Tripping arrangement for SPP , FSP , under voltage , over voltage and over load protection through Contactor at output

20.

Painting Colour

Option

21.

By Pass Switch

Manual L& T By-Pass switch Provided in the STABILISER

22.

Cable  Termination

Bolt Nut in Hylam / Copper Bus Bar Arrangement

23.

Noise

55 db

24.

Insulation Class

F Class

25.

Method of Voltage
Regulation

3 Phase independent regulation with three servo motors and buck/boost transformer

Apart form our regular Single and three phase servo stabilizer we manufacture and supply two phase servo stabilizers. Whereever there is a neutral problem by using this two phase stabilizer we can overcome the same. The input to the unit will be 440V AC and the output can be either 440V or 230V . This can be obtained through isolation or auto transformers depending on the site condition and requirement. This is mainly used in Colour sorters and other single phase machineries which needs a stabilized regulated power.
