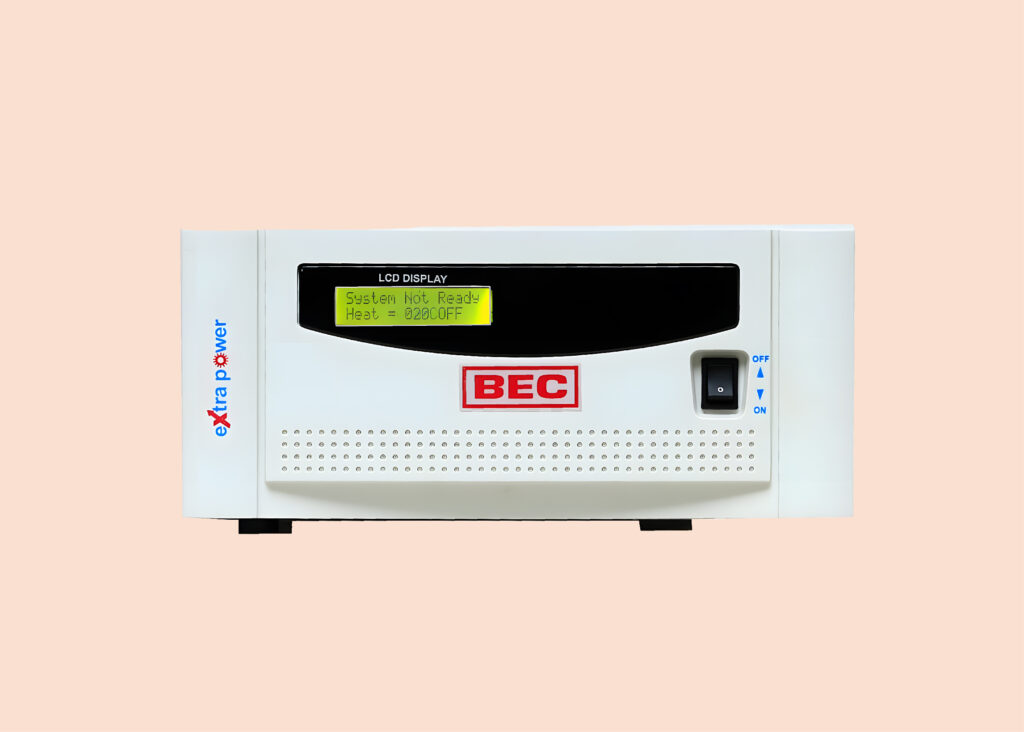

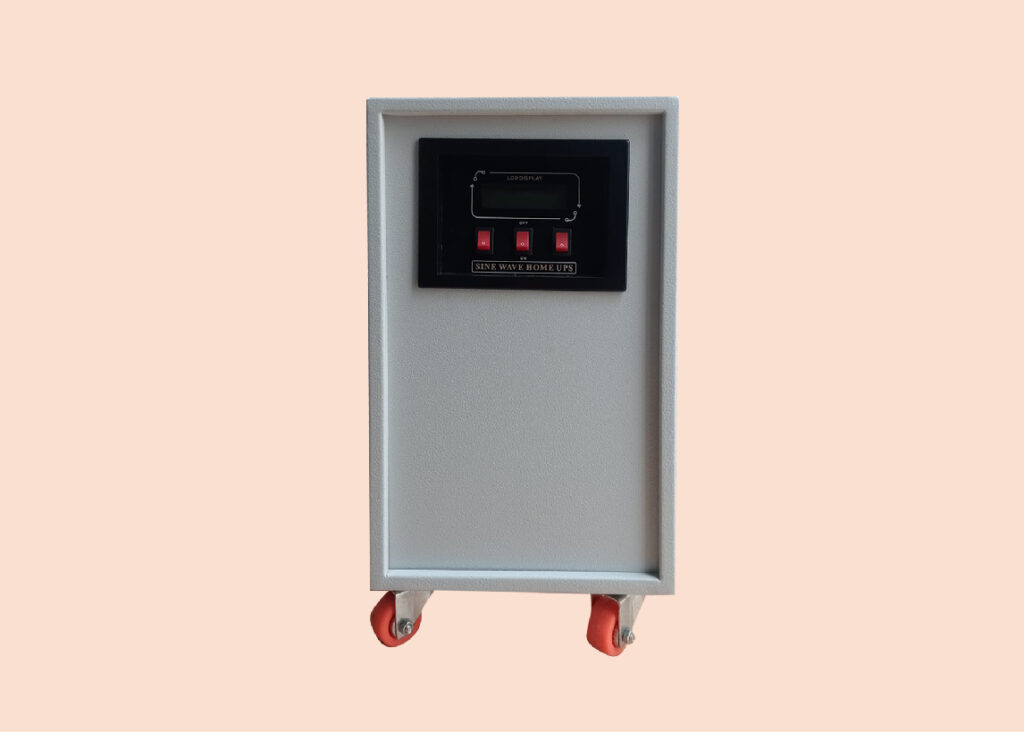

BEC Offline UPS (Standby UPS)
BEC offline UPS is a power protection system that provides backup power when the main power source fails. It’s the most basic type of UPS and is designed for small, non-critical applications. Offline UPS, or Standby UPS, allows devices to run directly on mains power until there’s aninterruption. Once the power goes off, the UPS switches to battery mode, ensuring no downtime for the connected equipment
- Capacity: 1 to 5 KVA
- Input Voltage Range: 230V AC ±25% (Single Phase).
- Output Voltage: 230V AC (Single Phase).
- Inverter Efficiency: >85% with less than 3% harmonic distortion.
- Pure sine wave
- LCD display to read Input / Output voltage, load
- LCD display to read Input / Output voltage, load
- Compact and rack mountable
- Advantages
- Cost-effective: Generally more affordable than online systems.
- Simplicity: Easier to install and maintain due to fewer components.
- Energy efficiency: Often more efficient under normal conditions since they’re not continuously converting power.
S. NO | PARTICULARS | SPECIFICATIONS |
1. | Technology | MOSFET |
2. | Input | 230VAc =/-25% |
3. | Output Voltage | 230V AC Single Phase |
4. | Voltage Regulation | ± 1% (Inv) |
5. | Frequency | 50Hz |
6. | Waveform | HI - PWM Sine wave |
7. | Harmonic Distortion | Less than 3% (No load to full load) |
8. | Inverter efficiency | >85% |
9. | Power Factor | >0.8 |
10. | Overload | 120% for 30sec |
11. | Audible Noise | Less than 45 dB at 1 Meter |
12. | Display | LCD -Input ,Output and Battery |
13. | Over Load | Cut off at 100 % |
- Light
- Fan
- TV
- Audio Mixer
- Computer
