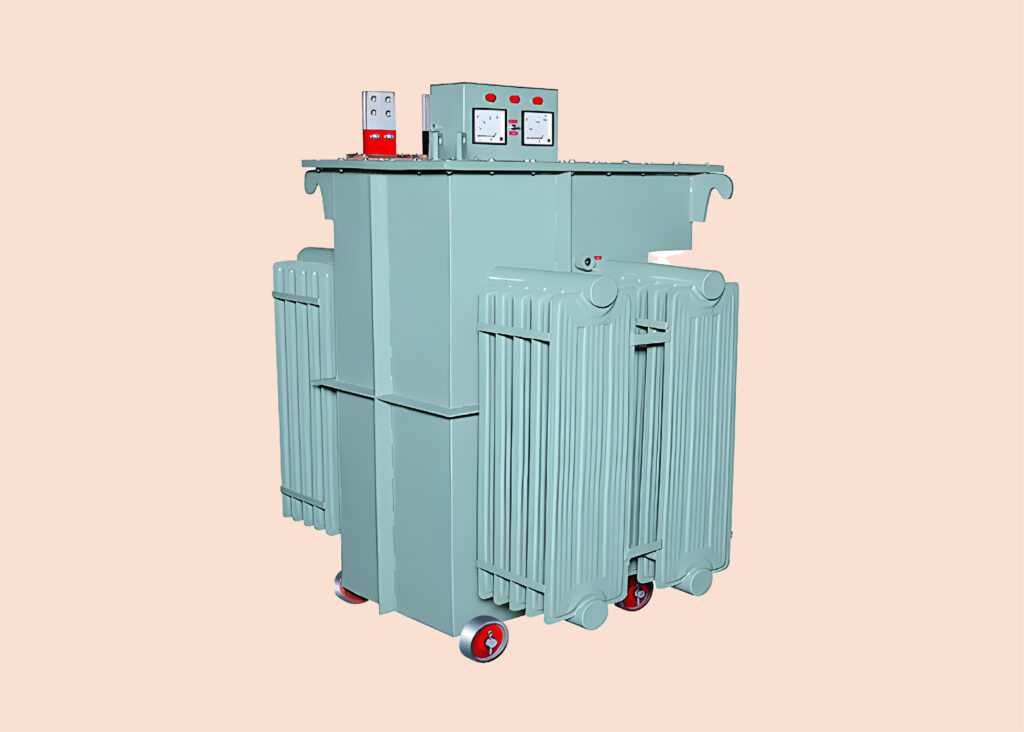

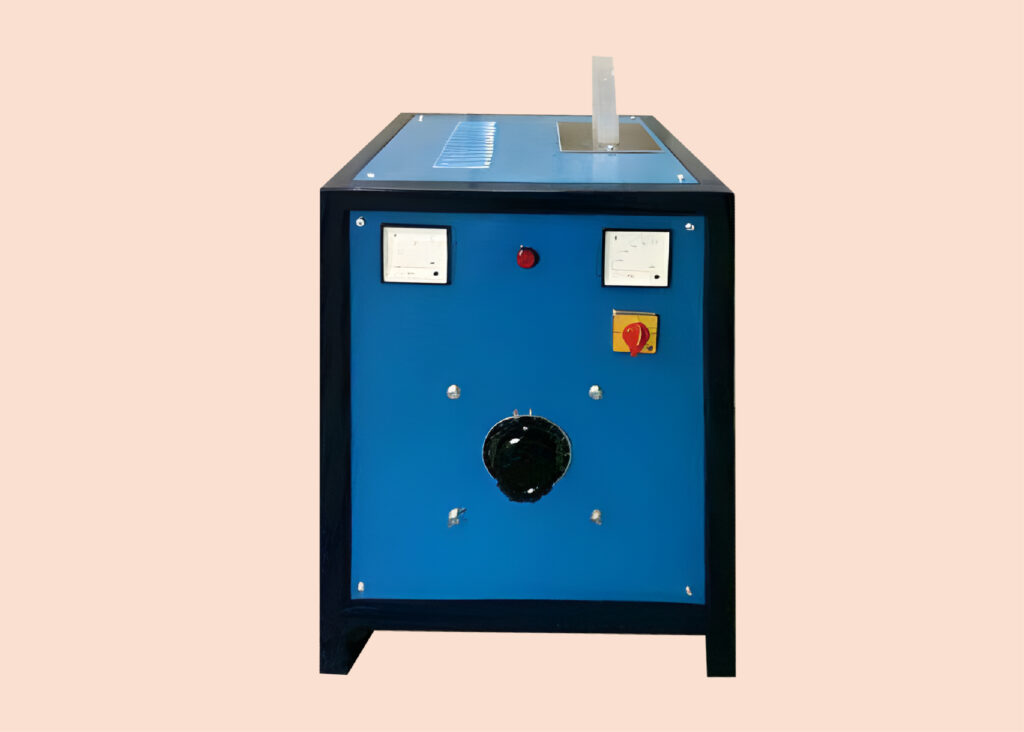

BEC DC Rectifier
BEC DC Rectifiers efficiently convert alternating current (AC) to direct current (DC), offering precise control for applications like welding, electroplating, and anodizing. Designed with adjustable output, these rectifiers are ideal for industrial and laboratory use.
- Capacity: Voltage range from 8V to 24V, with current ratings from 100A to 10,000A.
- Input Voltage Range: 415V AC, 3-phase 50Hz (also available for 240V AC, 1-phase for lower capacities).
- Output Voltage: Adjustable DC voltage from zero to full rated value with low ripple (<5%).
- Cooling Type: Available in both air-cooled and oil-cooled versions.
Rectifier Units For Electroplating & Anodising A variable voltage D. C, source is required for electro deposition of electroplating, anodising etc. Brief Specifications: | |
A. C. Input | Rectifiers are designed to work on 415V AC, 3ph. 50 Hz. supply and suitable for an input range of 375V to 450V. Units of very small capacities namely 8V/12V/16V DC upto 100 amps rating can also be supplied to work on an input voltage of 240V AC 1ph, 50Hz. supply. |
D. C. Output | The DC output voltage is continuously adjustable from zero to full rated value, from no load to full rated current, over the input range as specified. All 3 phase units have low ripple of less than 5% and are suitable for all kinds of metal finishing. |
